Load Lift

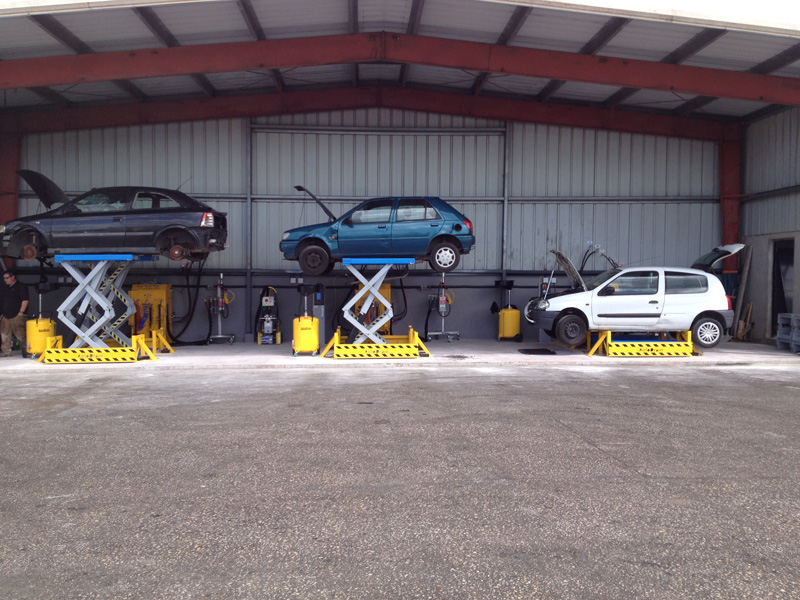

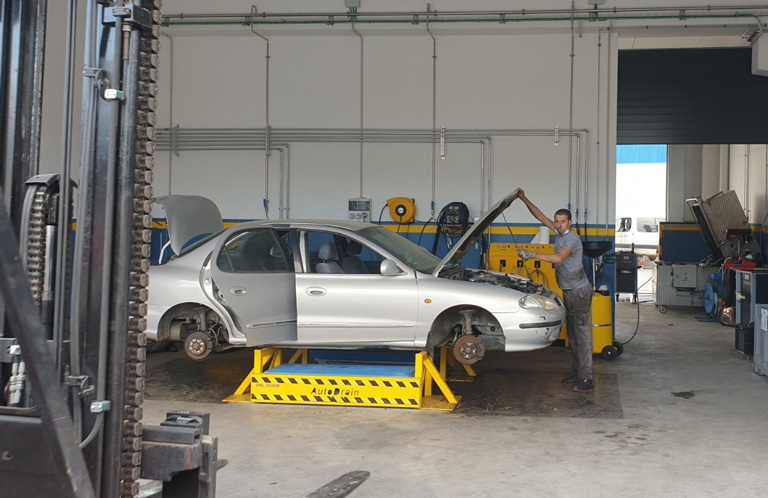

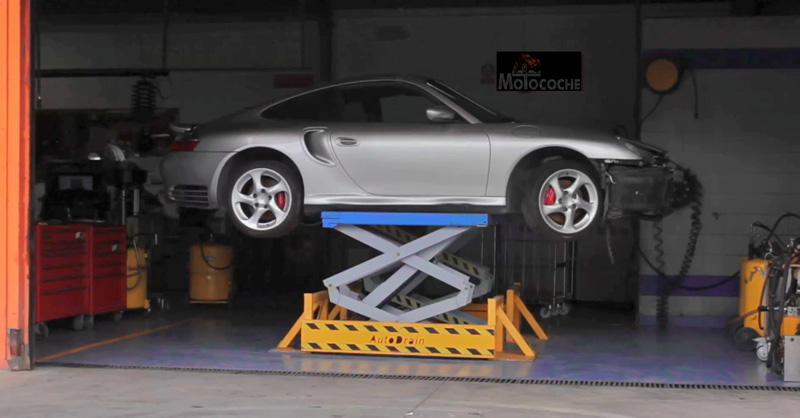

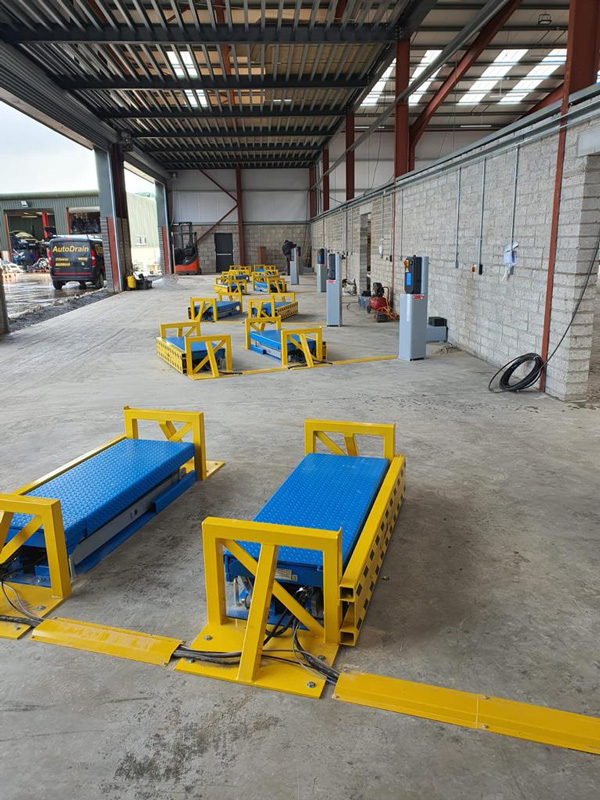

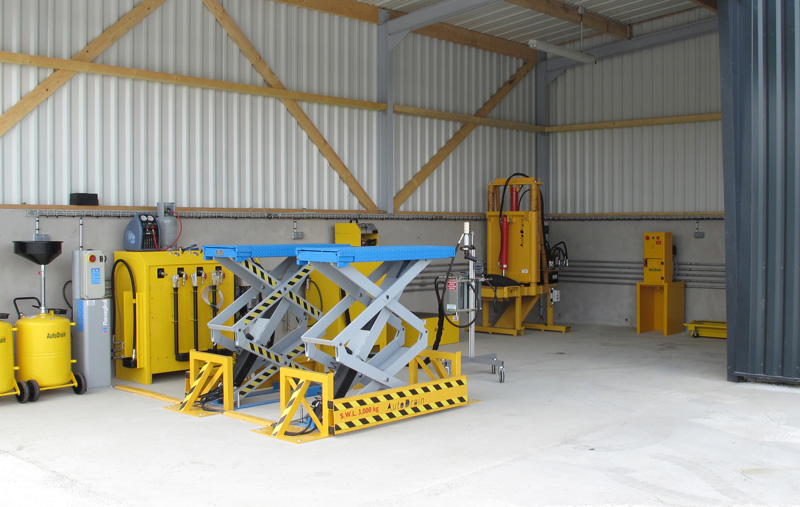

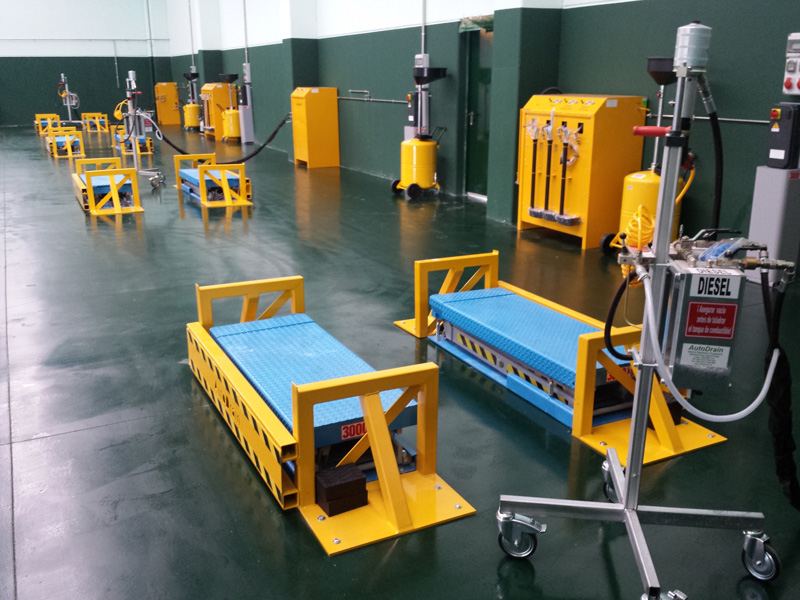

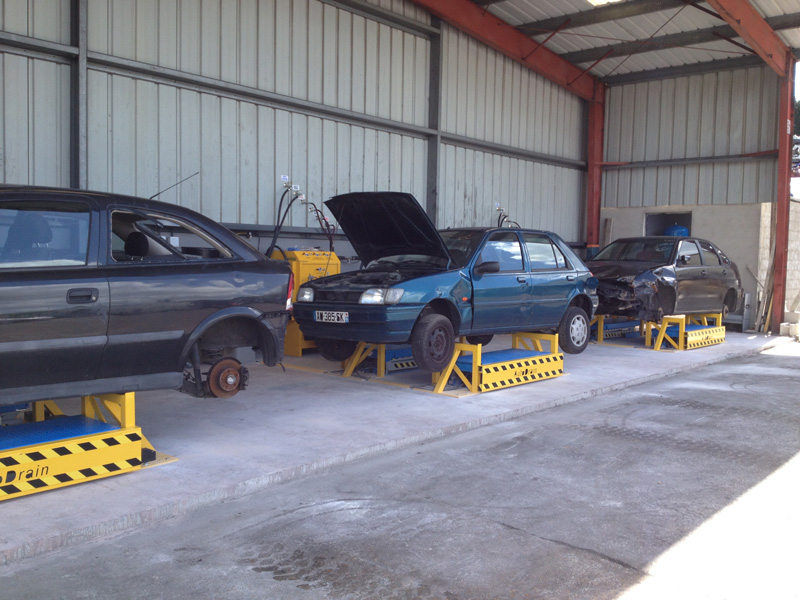

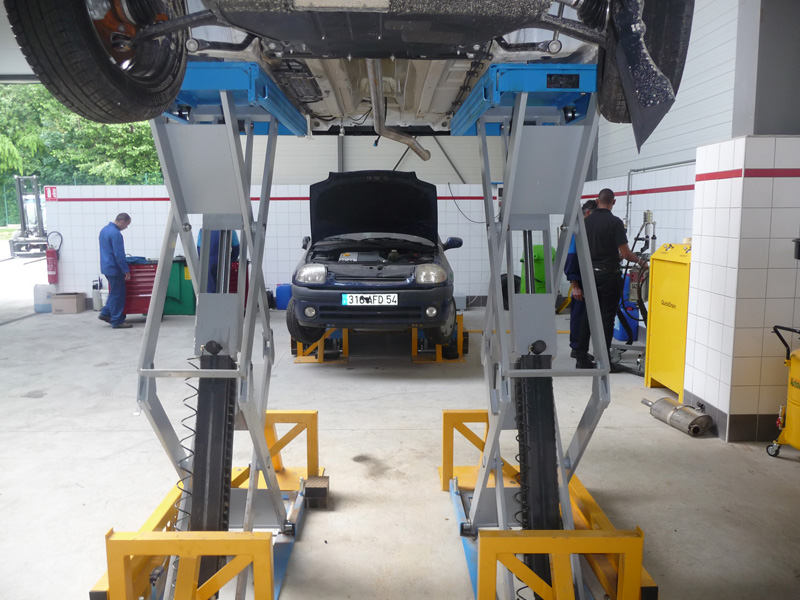

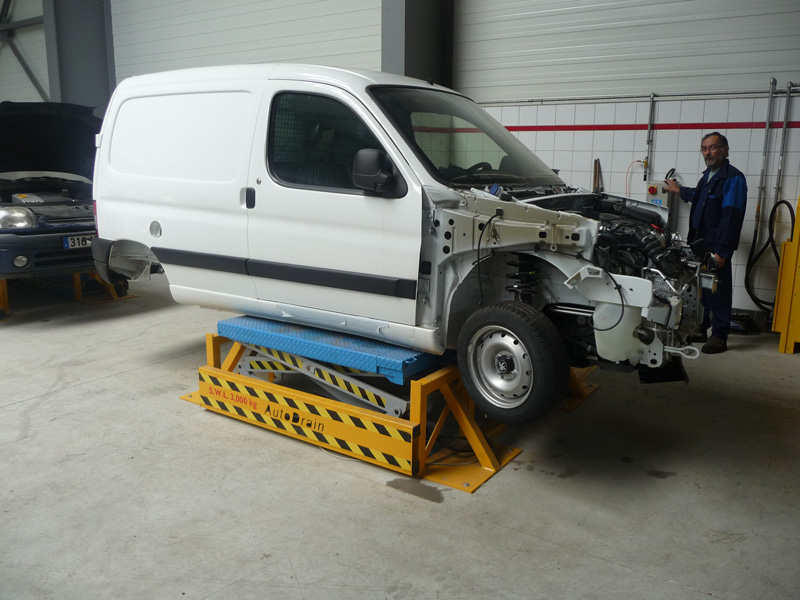

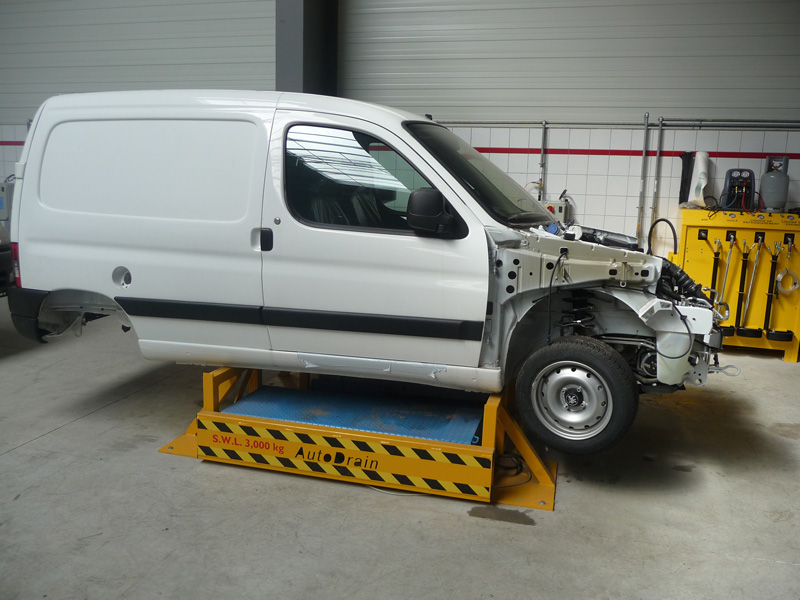

Image of AutoDrain Load Lift | The quick and easy way to access end of life vehicles

REQUEST A QUOTE

No need to move an End of Life Vehicle multiple times. All aspects of the depollution and dismantling process can be carried out in this one place enabling an increase in safety, productivity and efficiency

All doors can be opened for easy internal access
ELV’s can be loaded in any condition in approx. 5 seconds

SAFETY

Dual automatic locking devices with pneumatic release, ensures maximum safety when the system is in the standing position
Automatic safety stop and alarm as the lift approaches the floor
Designed to prevent loading/unloading directly on/off the lift
The multi height operation makes it suitable for all operators

Specification

Available in 400v 3phase or 240v single phase electro hydraulic
Lifting speed, ground to working height in 30 seconds
Compressed air safety locks
Self-lubricating pivot points

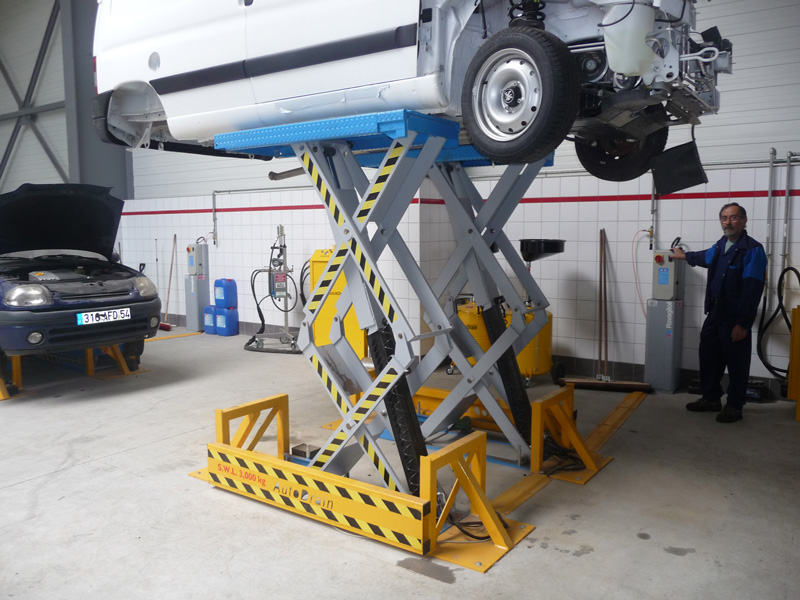

Solid steel scissor arms
SWL 3000kg
2100W x 1920D x Max. height 1825
Net weight 900kg

Find Out More

Product PDF Download

AutoDrain Maintenance Services

Related Videos

“We invested in an AutoDrain LoadLift and starter pack in 2008 (12 years ago) and the equipment has served us well and is still in daily use…now we are ready to upgrade to a fixed system, after 12 years of reliable use and good support we have chosen AutoDrain once again”

Paul Allport
Allport Metal Recycling Ltd, Gwynedd, North Wales
